ⓘ Description

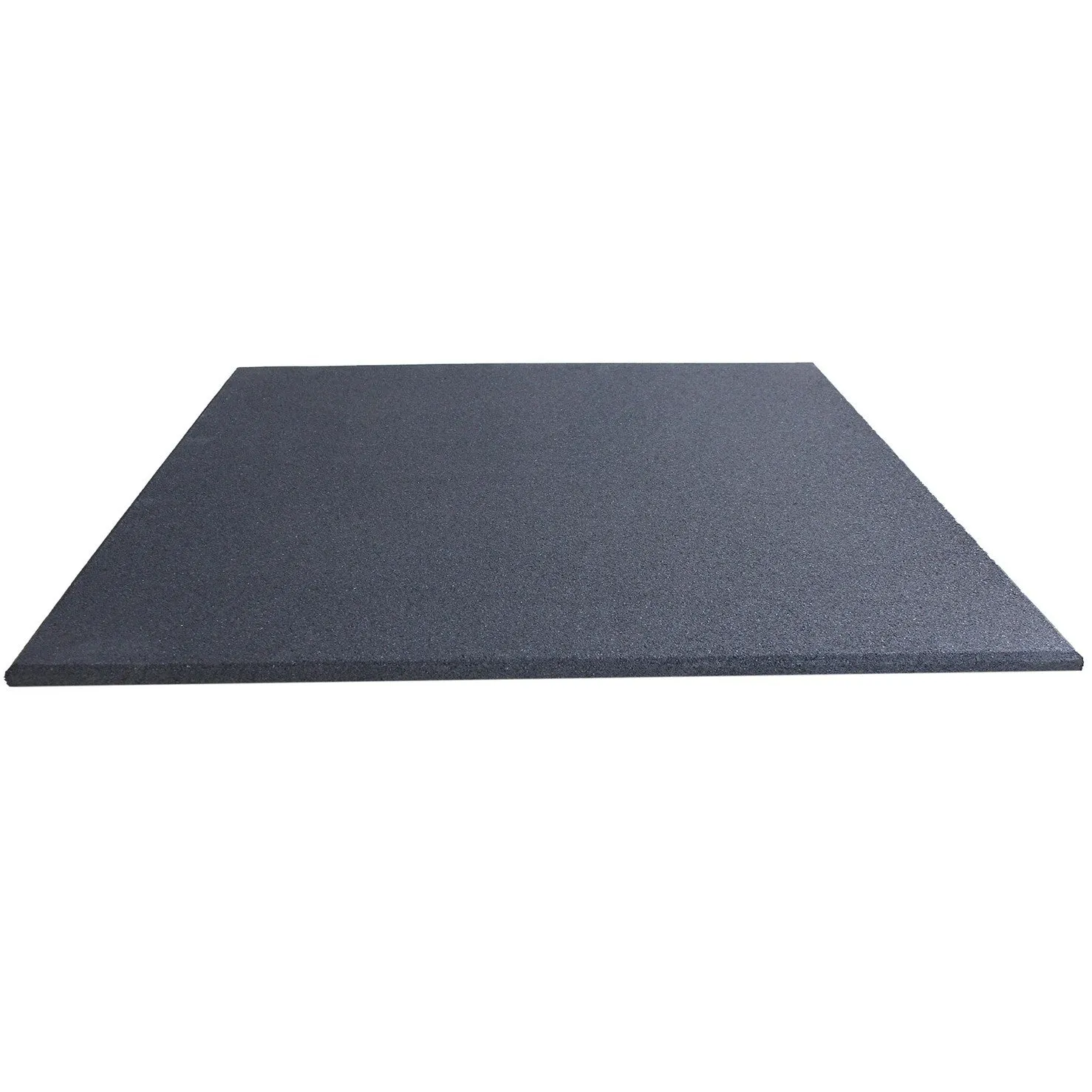

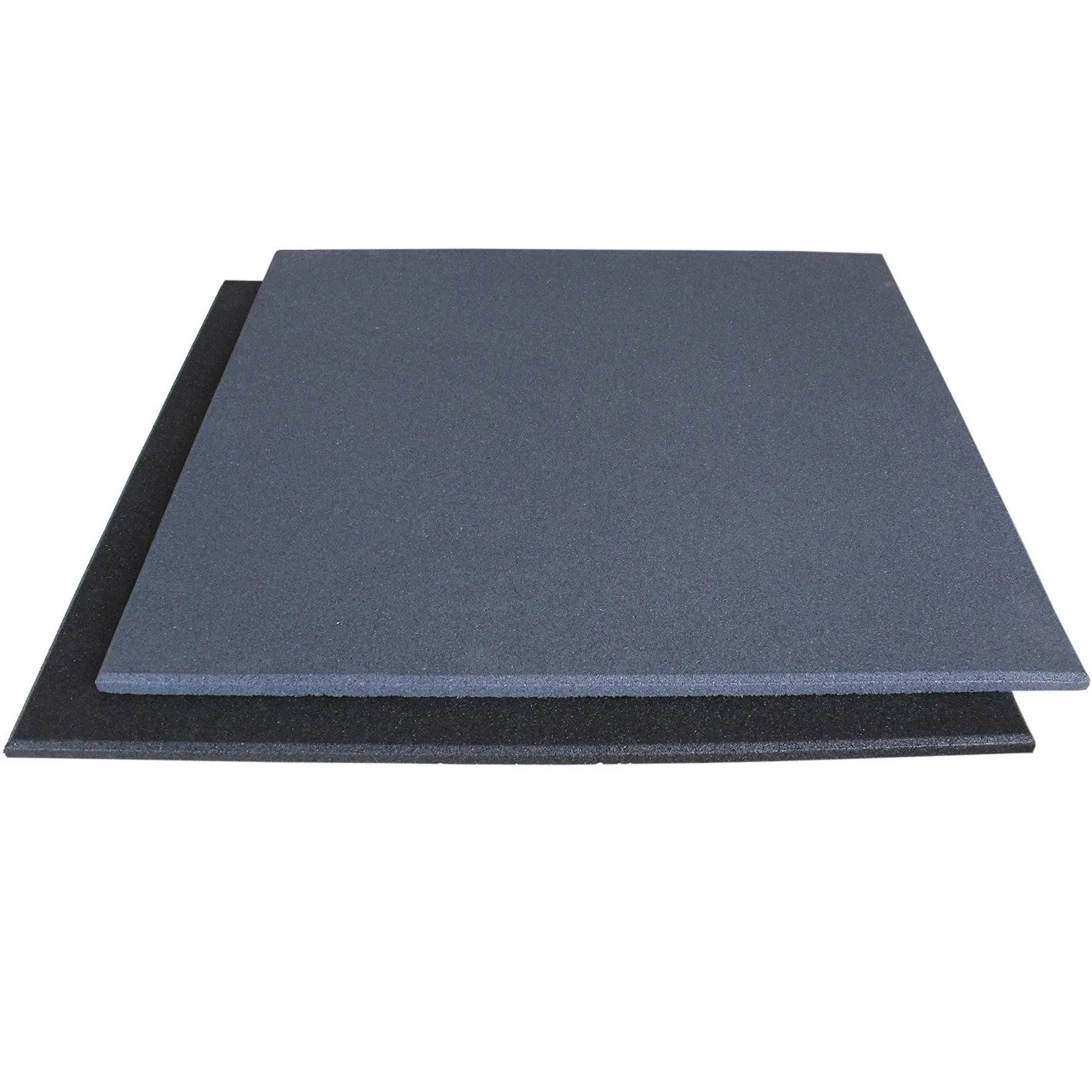

45 x Flatline PRO Grey Rubber Gym Flooring 1m x 1m x 20mm
( for single tiles)
Cannons UK are proud to introduce our new Flatline Pro tiles that are manufactured using a COLD process, which sets new standards for recycled rubber tiles. (No other company in the UK offers this)
This new process has been years in the making and makes fitting the tiles even easier than ever

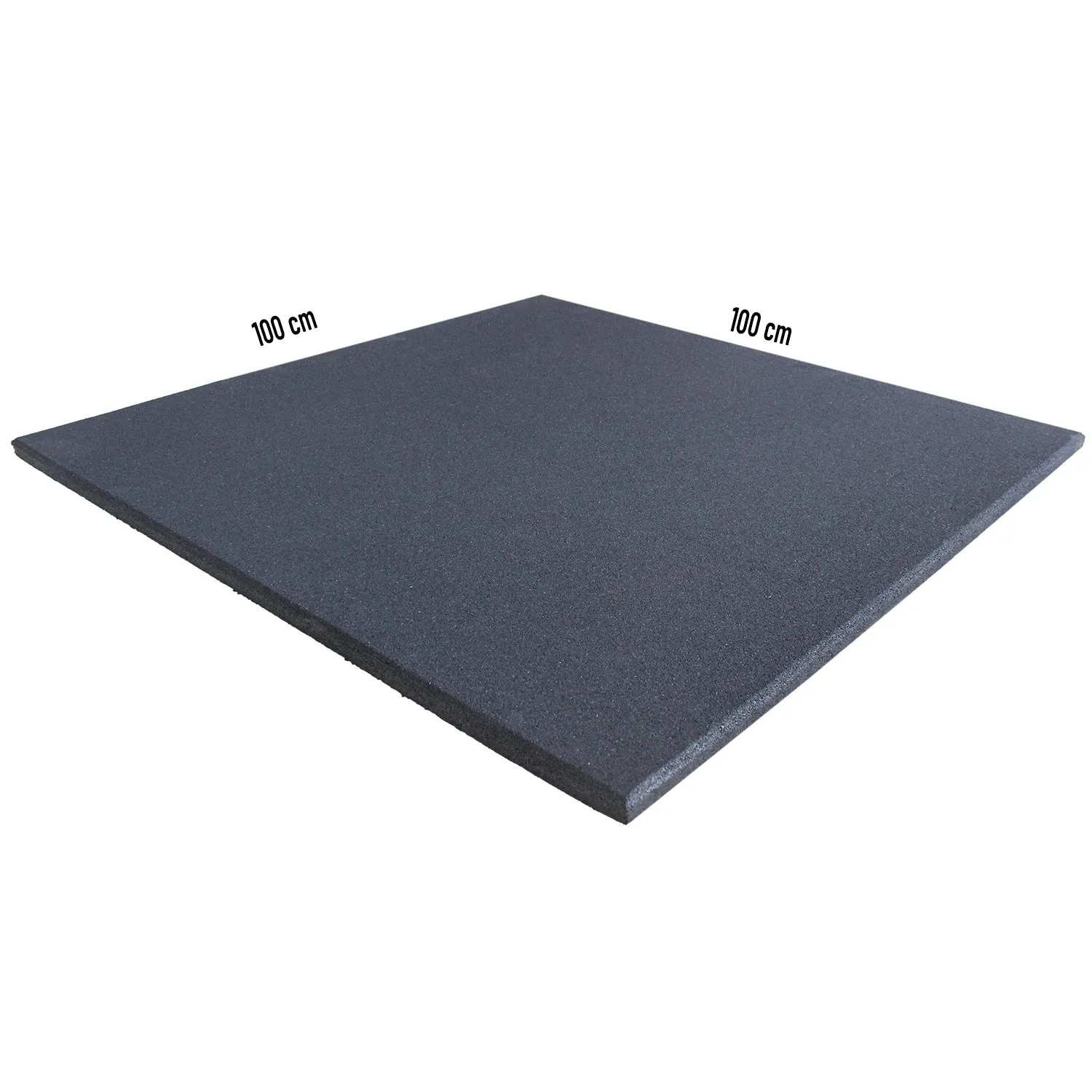

Unlike other recycled rubber flooring that use a Hot process there is almost no tolerance so each mat is 1m x 1m (imagine trying to fit tiles together if sides are different sizes) meaning you can be happy in the knowledge that each tile is the same size as the next.
No bad smells (VOC Tested) or crumbly loose surface, unlike other alternatives. We only use Binder (adhesive) direct from Germany to prevent this.
No gaps or compressing them together to make them fit. Install side by side or brickwork pattern, its your choice.
What is ‘batch variation’ and how can I avoid it?
Also we are the only suppliers in the UK where rubber mats have passed REACH certification (for full details) and VOC tested ( for full details)
Also REACH certified for extra piece of mind.
High-density (heavy duty) and heavy enough (18.5kg each) so you don’t need adhesives to fix them. Easy to cut with a Stanley knife.

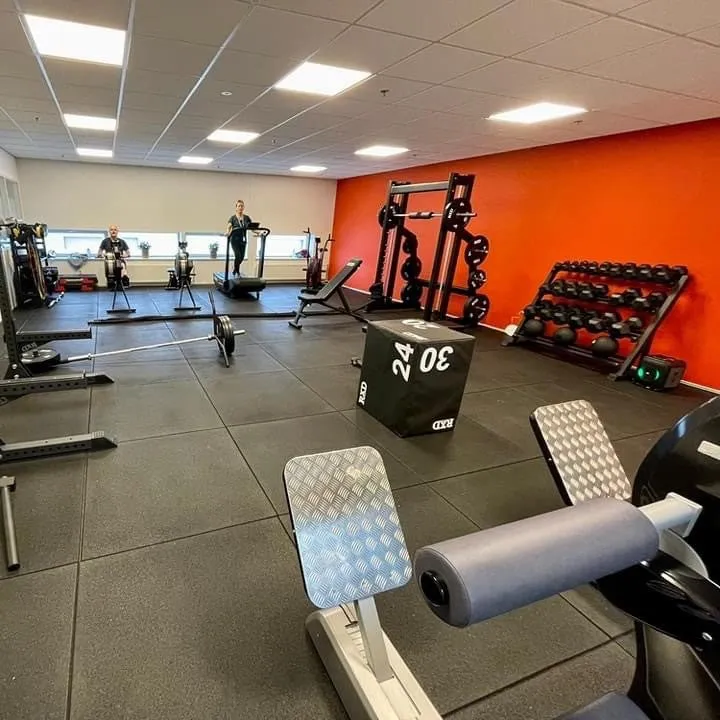

Thickness is 20 mm and are suitable to use for free weight areas, weightlifting flooring and cross fit gym flooring.
Need ramped edges and/or corners?
Gym Tiles Flatline, Is it Safe?
Flatline gym tiles environmentally friendly floor covering, because of being recycled and rebuilt product made from non-toxic and low VOC polyurethane bonding raw materials.

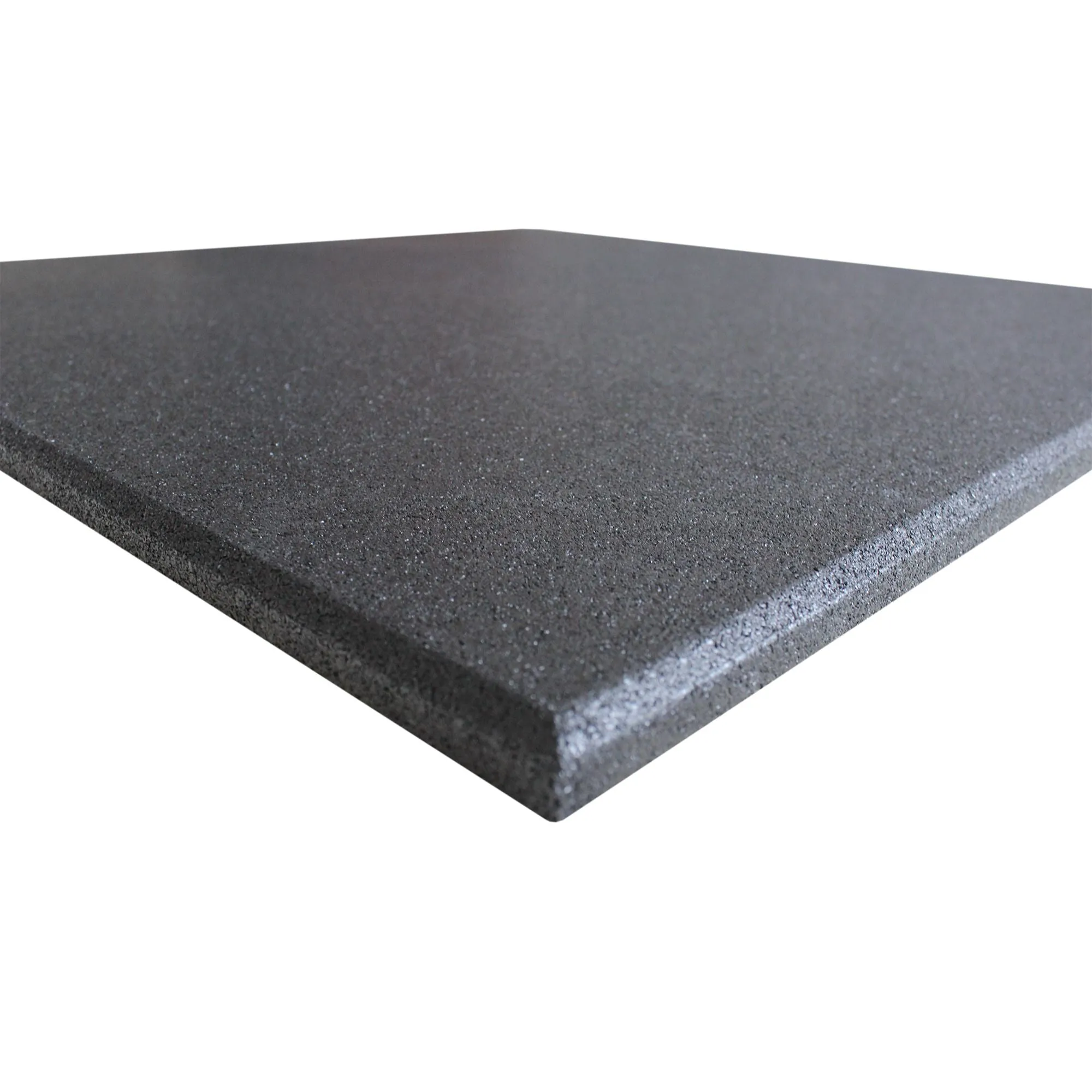

With our new technology, we have a special surface which is 100% flat and anti-porous. Anti porous surface technology has the advantage of easy cleaning and softer than classic rubber gym tiles.
Gym flooring tiles are guaranteed for 3 years against cracking and colour defects.
for full warranty details
Read our gym floor expert to learn and
📍Specification
Lets stop the noise complaints
Sound improvement Approx.18 dB to 23 dB; depending on the construction
Anti-slip property Class R 10 DIN 51130 Class DS (safer!) EN 14041
Electrical properties -0.7 kV (antistatic)
Gym Mats Flatline Technical Data
for full Product data sheet
for cleaning data sheet
for fitting instructions
Bulk density Approx. 950 kg/m3
Ultimate tensile strength (N/mm2) 1.38 (DIN 53455)
Max lifting weight for waist height lifting: 150kg
Size tolerance length: /- <1%
Size tolerance thickness /- <1%
Colour variance between batches /- 4%
Force reduction >10-18%, depending on material thickness
Temperature stability -30° C to 80° C
in Testing condition -120° C and for short periods up 300° C
Linear thermal expansion coeff. 23.1*10-5/°C 3.4% (DIN 53752)
Thermal conductivity 0.17 W/(mK) EN 12667
Fire behaviour (normal inflammable; B2) EN 13501
Sound improvement Approx.18 dB to 23 dB; depending on the construction
Anti-slip property Class R 10 DIN 51130 Class DS (safer!) EN 14041
Electrical properties -0.7 kV (antistatic)
Vapour diffusion Vapour permeable
Chemical behaviour Resistant to water, numerous diluted acids and alkaline solutions; chemically neutral; UV-resistant.(EN423)
📄Certificates
Flatline is not your average rubber flooring.
Reach Certified (no nasty chemicals) for more details
VOC tested (no chemical smells) for more details
Impact & sound insulation test (stop noise complaints) certificate
Factory CE approved for more details
ISO 9001 : 2015 for more details
EN ISO 5470 : 2001 (resistance to abrasion) for certificate
ISO 14001:2015 (Environmental management) for more details
ISO 45001:2018 (Health and safety) for more details
➡️Samples
📺Video
